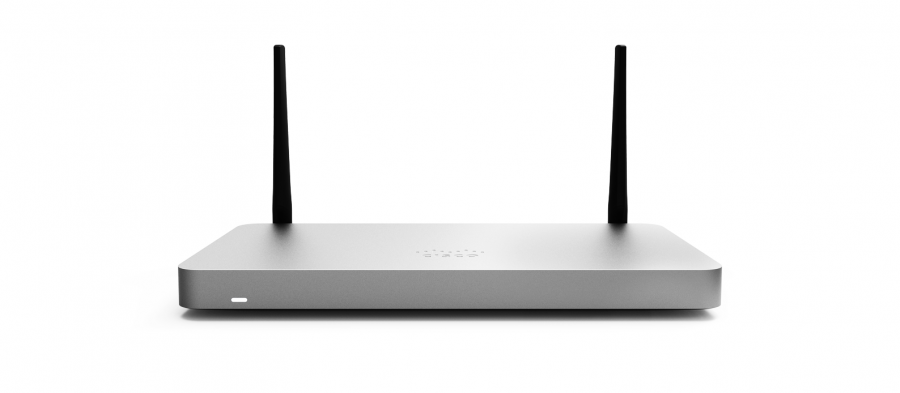

Meraki MX68CW

SKU : MX68CW-HW-NA

Regular price $1,173.00 ~~$2,373.00~~ 50% OFF

Add to Cart

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Spent $199.00 more to get free shipping

Estimated delivery between 01 June - 07 June.

COMPLETE THE LOOK

SD-WAN security appliance with Wi-Fi and LTE

All-in-one cloud-managed appliance combining security, SD-WAN, Wi-Fi, and cellular failover for remote branch offices.

Meraki MX68CW

$1,173.00

Ask about Meraki MX68CW

Product Details

Learn specifications and highlights for the Meraki MX68CW SD-WAN Enterprise Security Appliance. If you're ready, learn how to start your trial.

Key Specifications

Routers and SD-WAN appliances
WAN: 2 GbE, one Cat 6 modem, one USB (cellular failover)
LAN: 10 GbE (two PoE+); Wi-Fi: 802.11ac Wave 2
700 Mbps firewall throughput
300 Mbps site-to-site VPN throughput
Supports up to 50 users
Unified management for security, SD-WAN, Wi-Fi, switching, MDM, and IoT
Centralized management via web-based dashboard or API
Next-generation layer 7 firewall and content filtering
Built-in SD-WAN connectivity to Cisco Umbrella global data centers
Layer 7 application optimization over self-healing Auto VPN (SD-WAN fabric)
Support for native IPsec or Cisco AnyConnect remote client VPN
Integrated LTE modem for cellular failover
Built-in 802.11ac Wave 2 wireless access point

Features that delight

SD-branch cloud platform

Unified management for security, SD-WAN, Wi-Fi, switching, and IoT
Centralized cloud dashboard or API management
Zero-touch provisioning for rapid deployment
Automatic firmware updates and security patches

Unified threat management

Next-generation layer 7 firewall
Content filtering and URL categorization
Advanced malware protection with Cisco AMP
Intrusion detection and prevention (IDS/IPS)

Cloud security

Built-in SD-WAN connectivity to Cisco Umbrella
DNS-layer security for all connected devices
Secure web gateway functionality
Cloud access security broker (CASB) integration

SD-WAN

Application-aware routing and optimization
Self-healing Auto VPN mesh networking
Dual WAN with automatic failover
Performance monitoring across WAN links

Network visibility

Real-time application usage monitoring
Client device identification and profiling
At-a-glance performance of apps across LAN, WAN, and server
Multi-site uplink status in one view

Datasheet

Specifications
Managed via Cisco Meraki Dashboard Automatic Firmware upgrades WAN Link Balancing Automatic WAN Failover SD-WAN over Meraki AutoVPN L3/L7 Stateful Firewall Geo based firewall rules 1:1 and 1:Many NAT Configurable VLANs / DHCP support Static Routing Client VPN endpoint	Meraki AutoVPN and IPSec VPN endpoint Active Directory integration Content Filtering Malware Protection (AMP) w/ optional Threat Grid integration IDS/IPS protection Custom Traffic Shaping Historical Client Usage statistics Netflow support Syslog integration Remote Packet Capture tools 802.1X wired and wireless support
Dual WAN Uplinks	Yes (With LAN conversion) / Yes
Cellular Uplink	Built-in (Cellular models only), Via 3rd Party USB Modem / Built-in (Cellular Models Only), Via 3rd Party USB Modem
Stateful Firewall Throughput	700 Mbps / 700 Mbps
Maximum VPN Throughput	400 Mbps / 400 Mbps
Next Generation Firewall (Detection) Throughput	400 Mbps / 400 Mbps
PoE Capabilities	No / Yes, 2x GbE RJ45 LAN Ports
Recommended Device Count	Small branch with up to 50 devices / Small branch with up to 50 devices
MX67 / W	MX67C / MX68 / W / MX68CW
1x Dedicated GbE RJ45 1x Convertible LAN GbE RJ45	1x Dedicated GbE RJ45 1x Convertible LAN GbE RJ45 / 2x Dedicated GbE RJ45 / 2x Dedicated GbE RJ45
Cellular Uplink via 3rd Party USB Modem	Built-in Cellular Uplink or 3rd Party USB Modem / Cellular Uplink via 3rd Party USB Modem / Built-in Cellular Uplink or 3rd Party USB Modem
Radio Information	802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO / 802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO
Antennas	2 x 2 MU-MIMO with two spatial streams / 2 x 2 MU-MIMO with two spatial streams
Maximum Data Rate	1.3 Gbps / 1.3 Gbps
HSPA+	2, 4, 5 / 1, 3, 5/6, 8
FDD-LTE	2, 4, 5(*), 12/17, 13, 29 / 1, 3, 7, 8, 20, 26/5, 28A, 28B
TDD-LTE	- / 34, 39, 40, 41/38
TD -SCDMA Bands	- / 34 (Band A), 39 (Band F)
GSM Bands	850, 900, 1800, 1900 / 900, 1800
CA	2xDL-CA up to 40Mhz: 2+17, 4+17, 2+29, 4+29, 4+5, 2+5 / 2xDL-CA up to 40Mhz: 3+20, 3+8, 7+20, 1+8, 1+5, 3+5
Certifications	PTCRB (US) / RCM (ANZ, APAC), GCF (EU)
Certified Carriers	Verizon, AT&T, T-Mobile / Orange, Telia, Telecom Italia, Telenor, Telefonica, Post, BT, STC, NTT docomo, Telstra, Optus, Spark NZ, Vodafone NZ, SingTel , Vodafone (UK, Germany, Ireland, Spain, Italy, Portugal)
Mount Type	Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount
Dimensions (h x d x w)	1.1 x 5.1 x 9.4 in / 27 x 130 x 239 mm / 1.1 x 6.5 x 9.4 in / 27 x 164 x 239 mm / 1.1 x 6.9 x 9.4 in / 27 x 176 x 239 mm / 1.1 x 5.8 x 11.2 in / 27 x 148 x 284 mm / 1.1 x 6.8 x 11.2 in / 27 x 172 x 284 mm / 1.1 x 7.0 x 11.2 in / 27 x178 x 284 mm
Weight	1.74 lb / 0.79 kg / 1.84 lb / 0.83 kg / 1.87 lb / 0.85 kg / 2.46 lb / 1.12 kg / 2.55 lb / 1.16 kg / 2.61 lb / 1.18 kg
Power Supply	18W DC / 18W DC / 18W DC / 100W DC / 100W DC / 100W DC
Power Load (idle/max)	5W / 14W / 15 / 23W / 6W / 17W / 11W / 79W / 19W / 87W / 19W / 89W
Operating Temperature	32°F - 113°F 0°C - 45°C / 32°F - 113°F 0°C - 45°C / 32°F - 113°F 0°C - 45°C / 32°F - 113 °F 0°C - 45°C / 32°F - 113 °F 0°C - 45°C / 32°F - 113 °F 0°C - 45°C
Humidity	5% to 95% / 5% to 95% / 5% to 95% / 5% to 95% / 5% to 95% / 5% to 95%
Product	Warranty Period / Warranty Information
MX67/68	Lifetime / Full lifetime hardware warranty with next-day advanced replacement included.
MX67/68 Accessories	1 Year / The following are considered accessories: SFP Modules, all mounting kits and stands, interface modules, additional power cords
MX67 / C / W
MX68 / W / CW
3x Dedicated GbE RJ45	8x Dedicated GbE RJ45
1x Convertible LAN/WAN GbE RJ45	2x Dedicated GbE RJ45 PoE+
Accessory
Description
MA-PWR-30WAC	Meraki MX Replacement Power Adapter (MX67, MX67C, MX67W) (30 Watts AC)
MA-PWR-100WAC	Meraki MX Replacement Power Adapter (MX68 / 68W / 68CW) (100 Watts AC)
MA-ANT-MX	One pair of external dual-band dipole 802.11 antennas for MX67W or MX68W (Connector type: RP-SMA)
MA-ANT-LTE-1	Replacement LTE Antenna for the MX67C
MA-SIMTRAY-2C	Two SIM Card Trays (MX67C / MX68CW)
MA-SIMTRAY-5C	Five SIM Card Trays (MX67C / MX68CW)
MA-PWR-CORD-US	1x AC Power Cable, US plug
MA-PWR-CORD-EU	1x AC Power Cable, EU plug
MA-PWR-CORD-UK	1x AC Power Cable, UK plug
MA-PWR-CORD-AU	1x AC Power Cable, AU plug

Shipping & Returns

SHIPPING

Free Ground Shipping on all orders over $500
Orders are processed and shipped within 1–2 business days
Standard delivery: 3–7 business days (Continental US)
Expedited and overnight shipping options available at checkout
All shipments include tracking information sent to your email
Signature may be required for high-value orders

RETURNS & EXCHANGES

30-day return policy on all hardware products in original, unopened packaging
Defective items may be returned within 30 days for a full replacement or refund
Software licenses and activated subscriptions are non-refundable once claimed in the Meraki Dashboard
Return shipping is prepaid for defective items; buyer pays return shipping for change-of-mind returns
Refunds are processed within 5–10 business days after we receive the returned item

WARRANTY & SUPPORT

All Cisco Meraki hardware includes the standard Cisco manufacturer warranty
Active license subscriptions include 24/7 Cisco Meraki cloud support and lifetime hardware replacement
Novbox is an Authorized Cisco Dealer — all products are 100% genuine and factory-sealed
