Meraki MX105

SKU : MERAKI MX105

Regular price $5,748.00 $9,168.00 37% OFF


/
Add to Cart

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Spent $199.00 more to get free shipping
Estimated delivery between - .

COMPLETE THE LOOK

High-performance SD-WAN appliance for medium sites

Cloud-managed security and SD-WAN appliance with advanced threat protection for medium-sized campus deployments.

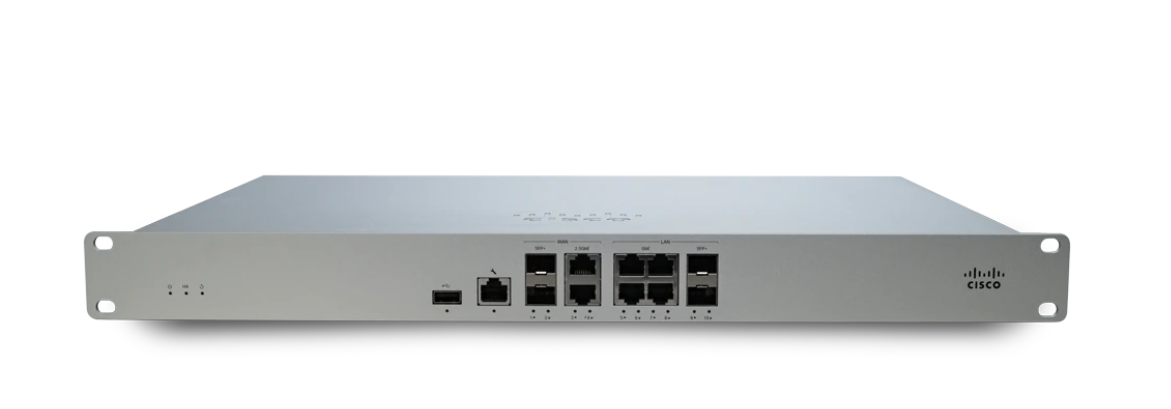

Meraki MX105

Meraki MX105

$5,748.00

Ask about Meraki MX105

Product Details

The Meraki MX105 is an advanced SD-WAN and security appliance designed for high-performance enterprise networks requiring comprehensive threat protection.

Key Specifications

  • Advanced SD-WAN security appliance
  • High-throughput firewall and VPN capabilities
  • Multi-WAN support for redundancy and optimization
  • Cloud-managed via Meraki dashboard
  • Integrated advanced threat protection
  • Zero-trust security architecture support
  • Automated WAN optimization and load balancing
  • Comprehensive logging and analytics
  • Enterprise-grade performance and reliability
  • Simplified deployment and operations

Features that delight

SD-branch cloud platform
  • Unified management for security, SD-WAN, Wi-Fi, switching, and IoT
  • Centralized cloud dashboard or API management
  • Zero-touch provisioning for rapid deployment
  • Automatic firmware updates and security patches
Unified threat management
  • Next-generation layer 7 firewall
  • Content filtering and URL categorization
  • Advanced malware protection with Cisco AMP
  • Intrusion detection and prevention (IDS/IPS)
Cloud security
  • Built-in SD-WAN connectivity to Cisco Umbrella
  • DNS-layer security for all connected devices
  • Secure web gateway functionality
  • Cloud access security broker (CASB) integration
SD-WAN
  • Application-aware routing and optimization
  • Self-healing Auto VPN mesh networking
  • Dual WAN with automatic failover
  • Performance monitoring across WAN links
Network visibility
  • Real-time application usage monitoring
  • Client device identification and profiling
  • At-a-glance performance of apps across LAN, WAN, and server
  • Multi-site uplink status in one view
Datasheet
Specifications
Managed via Cisco Meraki Dashboard Automatic firmware upgrades WAN link balancing Automatic WAN failover SD-WAN over Meraki Auto VPN L3/L7 stateful firewall Geo-based firewall rules 1:1 and 1:Many NAT Configurable VLANs/DHCP support Static routing Client VPN endpointMeraki Auto VPN and L2TP/IPSec VPN endpoint
Active Directory integration
Content filtering
Malware protection (AMP) w/optional Threat Grid integration
IDS/IPS protection
Custom traffic shaping
Historical client usage statistics
Netflow support
Syslog integration
Remote packet capture tools
# of WAN uplinks4 / 4
Stateful firewall throughput3 Gbps / 5 Gbps
Maximum VPN throughput2.5 Gbps / 3.5 Gbps
Next Generation Firewall (Detection) Throughput2 Gbps / 2.5 Gbps
PoE CapabilitiesYes, 1x RJ45 / 2.5 Gigabit Ethernet port (WAN) / Yes, 1x RJ45 / 2.5 Gigabit Ethernet port (WAN)
Mount TypeRack mount / Rack mount / Rack mount
Dimensions (h x d x w)1.7 x 9.8 x 19 (in)
43.8 x 250 x 484.6 (mm) / 1.73 x 11.23 x 19 (in)
44 x 285.2 x 484.6 (mm) / 1.73 x 12.4 x 19 (in)
44 x 315 x 484.6 (mm)
Weight8.2 lb (3.7 kg) / 6.99 lbs (3.17 kg) / 10.74 lbs (4.87 kg) 2 fans and 2 PSUs inserted
Input operating voltage90-264 VAC (47-63 Hz) / 100-127 VAC, 200-240 VAC (50/60 Hz) / 100-127 VAC, 200-240 VAC (50/60 Hz)
PSU model numberN/A / N/A / Removable MA-PWR-150 W AC
Power load (idle/max)12 W / 55 W / 42 W/ 109 W / 53 W/ 123 W
Operating temperature32 °F to 104 °F (0 °C to 40 °C) / 32 °F to 104 °F (0 °C to 40 °C) / 32 °F to 104 °F (0 °C to 40 °C)
Humidity5% to 95% / 5% to 95% / 5% to 95%
ProductWarranty Period / Warranty Information
MX95/105Lifetime / Full lifetime hardware warranty with next-day advanced replacement included.
MX95/105 Accessories1 Year / The following are considered accessories:
SFP Modules, all mounting kits and stands, interface modules, additional power cords
MX85
MX95/105
2x dedicated 1 Gigabit Ethernet SFP 2x dedicated 1 Gigabit Ethernet RJ452x dedicated 10 Gigabit Ethernet SFP+
2x dedicated 2.5 Gigabit Ethernet RJ45
MX95/105
8x dedicated 1 Gigabit Ethernet RJ45 2x dedicated 1 Gigabit Ethernet SFP4x dedicated 1 Gigabit Ethernet RJ45
2x dedicated 10 Gigabit Ethernet SFP+
Accessory
Description
MA-PWR-150WAC
1x Meraki MX105 power supply unit (PSU)
MA-PWR-CORD-US
1x AC power cable, U.S. plug
MA-PWR-CORD-EU
1x AC power cable, EU plug
MA-PWR-CORD-UK
1x AC power cable, UK plug
MA-PWR-CORD-AU
1x AC power cable, AU plug
MA-PWR-CORD-BR
1X AC power cable, BR plug
MA-RCKMNT-KIT-1
Optional: Rack mount screws kit. (Not included with MX95 and MX105)
Product ID
Fiber Type
Description
MA-SFP-1GB-SX
Multi-mode fiber (MMF)
MA-SFP-1GB-LX10
Single-mode fiber (SMF)
MA-SFP-1GB-TX
N/A (RJ45 copper SFP)
MA-SFP-10GB-SR
Multi-mode fiber (MMF)
MA-SFP-10GB-LR
Single-mode fiber (SMF)
MA-SFP-10GB-LRM
Single-mode fiber (SMF)
Multi-mode fiber (MMF)
MA-SFP-10GB-ER
Single-moder fiber (SMF)
MA-SFP-10GB-ZR
Single-mode fiber (SMF)
MA-CBL-TA-1M
10 GSFP+Cu, 1 m passive twinax
MA-CBL-TA-3M
10 GSFP+Cu, 3 m passive twinax
