Meraki MX68 Meraki MX68 - Detail View
Meraki MX68
Meraki MX68 - Detail View

Meraki MX68

SKU : MX68-HW

Regular price $544.00 $1,217.00 55% OFF


/
Add to Cart

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Delivery & Return
Ask a question
Spent $199.00 more to get free shipping
Estimated delivery between - .

COMPLETE THE LOOK

A building block for SASE in a sleek desktop form factor

Small-branch security and SD-WAN appliance for up to 50 users.

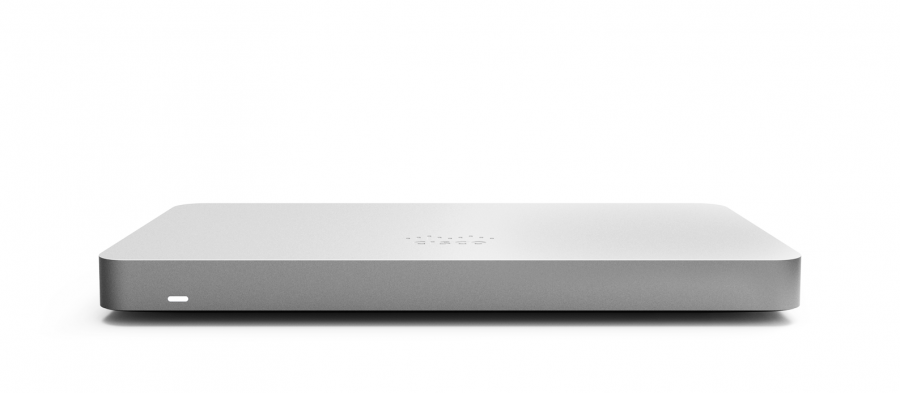

Meraki MX68

Meraki MX68

$544.00

Ask about Meraki MX68

Product Details

Learn about the Meraki MX68 specifications, and compare the specs to other Meraki models.

Key Specifications

  • Routers and SD-WAN appliances
  • LAN: 10 GbE (two PoE+)
  • 700 Mbps firewall throughput
  • 300 Mbps site-to-site VPN throughput
  • Supports up to 50 users

Features that delight

SD-branch cloud platform
  • Unified management for security, SD-WAN, Wi-Fi, switching, and IoT
  • Centralized cloud dashboard or API management
  • Zero-touch provisioning for rapid deployment
  • Automatic firmware updates and security patches
Unified threat management
  • Next-generation layer 7 firewall
  • Content filtering and URL categorization
  • Advanced malware protection with Cisco AMP
  • Intrusion detection and prevention (IDS/IPS)
Cloud security
  • Built-in SD-WAN connectivity to Cisco Umbrella
  • DNS-layer security for all connected devices
  • Secure web gateway functionality
  • Cloud access security broker (CASB) integration
SD-WAN
  • Application-aware routing and optimization
  • Self-healing Auto VPN mesh networking
  • Dual WAN with automatic failover
  • Performance monitoring across WAN links
Network visibility
  • Real-time application usage monitoring
  • Client device identification and profiling
  • At-a-glance performance of apps across LAN, WAN, and server
  • Multi-site uplink status in one view
Datasheet
Specifications
Managed via Cisco Meraki Dashboard Automatic Firmware upgrades WAN Link Balancing Automatic WAN Failover SD-WAN over Meraki AutoVPN L3/L7 Stateful Firewall Geo based firewall rules 1:1 and 1:Many NAT Configurable VLANs / DHCP support Static Routing Client VPN endpointMeraki AutoVPN and IPSec VPN endpoint
Active Directory integration
Content Filtering
Malware Protection (AMP) w/ optional Threat Grid integration
IDS/IPS protection
Custom Traffic Shaping
Historical Client Usage statistics
Netflow support
Syslog integration
Remote Packet Capture tools
802.1X wired and wireless support
Dual WAN UplinksYes (With LAN conversion) / Yes
Cellular UplinkBuilt-in (Cellular models only), Via 3rd Party USB Modem / Built-in (Cellular Models Only), Via 3rd Party USB Modem
Stateful Firewall Throughput700 Mbps / 700 Mbps
Maximum VPN Throughput400 Mbps / 400 Mbps
Next Generation Firewall (Detection) Throughput400 Mbps / 400 Mbps
PoE CapabilitiesNo / Yes, 2x GbE RJ45 LAN Ports
Recommended Device CountSmall branch with
up to 50 devices / Small branch with
up to 50 devices
MX67 / WMX67C / MX68 / W / MX68CW
1x Dedicated GbE RJ45 1x Convertible LAN GbE RJ451x Dedicated GbE RJ45
1x Convertible LAN GbE RJ45 / 2x Dedicated GbE RJ45 / 2x Dedicated GbE RJ45
Cellular Uplink via 3rd Party USB ModemBuilt-in Cellular Uplink or 3rd Party USB Modem / Cellular Uplink via 3rd Party USB Modem / Built-in Cellular Uplink or 3rd Party USB Modem
Radio Information802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO / 802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO
Antennas2 x 2 MU-MIMO with two spatial streams / 2 x 2 MU-MIMO with two spatial streams
Maximum Data Rate1.3 Gbps / 1.3 Gbps
HSPA+2, 4, 5 / 1, 3, 5/6, 8
FDD-LTE2, 4, 5(*), 12/17, 13, 29 / 1, 3, 7, 8, 20, 26/5, 28A, 28B
TDD-LTE- / 34, 39, 40, 41/38
TD -SCDMA Bands- / 34 (Band A), 39 (Band F)
GSM Bands850, 900, 1800, 1900 / 900, 1800
CA2xDL-CA up to 40Mhz: 2+17, 4+17, 2+29, 4+29, 4+5, 2+5 / 2xDL-CA up to 40Mhz: 3+20, 3+8, 7+20, 1+8, 1+5, 3+5
CertificationsPTCRB (US) / RCM (ANZ, APAC), GCF (EU)
Certified CarriersVerizon, AT&T, T-Mobile / Orange, Telia, Telecom Italia, Telenor, Telefonica, Post, BT, STC, NTT docomo, Telstra, Optus, Spark NZ, Vodafone NZ, SingTel , Vodafone (UK, Germany, Ireland, Spain, Italy, Portugal)
Mount TypeDesktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount / Desktop / Wall Mount
Dimensions (h x d x w)1.1 x 5.1 x 9.4 in /
27 x 130 x 239 mm / 1.1 x 6.5 x 9.4 in /
27 x 164 x 239 mm / 1.1 x 6.9 x 9.4 in /
27 x 176 x 239 mm / 1.1 x 5.8 x 11.2 in /
27 x 148 x 284 mm / 1.1 x 6.8 x 11.2 in /
27 x 172 x 284 mm / 1.1 x 7.0 x 11.2 in /
27 x178 x 284 mm
Weight1.74 lb / 0.79 kg / 1.84 lb / 0.83 kg / 1.87 lb / 0.85 kg / 2.46 lb / 1.12 kg / 2.55 lb / 1.16 kg / 2.61 lb / 1.18 kg
Power Supply18W DC / 18W DC / 18W DC / 100W DC / 100W DC / 100W DC
Power Load (idle/max)5W / 14W / 15 / 23W / 6W / 17W / 11W / 79W / 19W / 87W / 19W / 89W
Operating Temperature32°F - 113°F
0°C - 45°C / 32°F - 113°F
0°C - 45°C / 32°F - 113°F
0°C - 45°C / 32°F - 113 °F
0°C - 45°C / 32°F - 113 °F
0°C - 45°C / 32°F - 113 °F
0°C - 45°C
Humidity5% to 95% / 5% to 95% / 5% to 95% / 5% to 95% / 5% to 95% / 5% to 95%
ProductWarranty Period / Warranty Information
MX67/68Lifetime / Full lifetime hardware warranty with next-day advanced replacement included.
MX67/68 Accessories1 Year / The following are considered accessories:
SFP Modules, all mounting kits and stands, interface modules, additional power cords
MX67 / C / W
MX68 / W / CW
3x Dedicated GbE RJ458x Dedicated GbE RJ45
1x Convertible LAN/WAN GbE RJ452x Dedicated GbE RJ45 PoE+
Accessory
Description
MA-PWR-30WACMeraki MX Replacement Power Adapter (MX67, MX67C, MX67W) (30 Watts AC)
MA-PWR-100WACMeraki MX Replacement Power Adapter (MX68 / 68W / 68CW) (100 Watts AC)
MA-ANT-MXOne pair of external dual-band dipole 802.11 antennas for MX67W or MX68W (Connector type: RP-SMA)
MA-ANT-LTE-1Replacement LTE Antenna for the MX67C
MA-SIMTRAY-2CTwo SIM Card Trays (MX67C / MX68CW)
MA-SIMTRAY-5CFive SIM Card Trays (MX67C / MX68CW)
MA-PWR-CORD-US1x AC Power Cable, US plug
MA-PWR-CORD-EU1x AC Power Cable, EU plug
MA-PWR-CORD-UK1x AC Power Cable, UK plug
MA-PWR-CORD-AU1x AC Power Cable, AU plug
