Meraki MV84X

SKU : MV84X

Regular price $9,030.00 $13,685.13 34% OFF


/
Available to order

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Spent $199.00 more to get free shipping

COMPLETE THE LOOK

Multi-sensor panoramic camera with 4TB storage

Four 5MP sensors totaling 20MP with extended retention for wide-area surveillance.

Meraki MV84X

Meraki MV84X

$9,030.00

Ask about Meraki MV84X

Need bulk pricing, configuration help, or a license tier quote?

Skip the cart and get a written quote from a Cisco-certified specialist — usually within 4 business hours. Includes pricing, ETA, and a recommendation if you need one.

Quoting on Meraki MV84X  ·  Same-day response, no call queue

Request a Quote →
Product Details

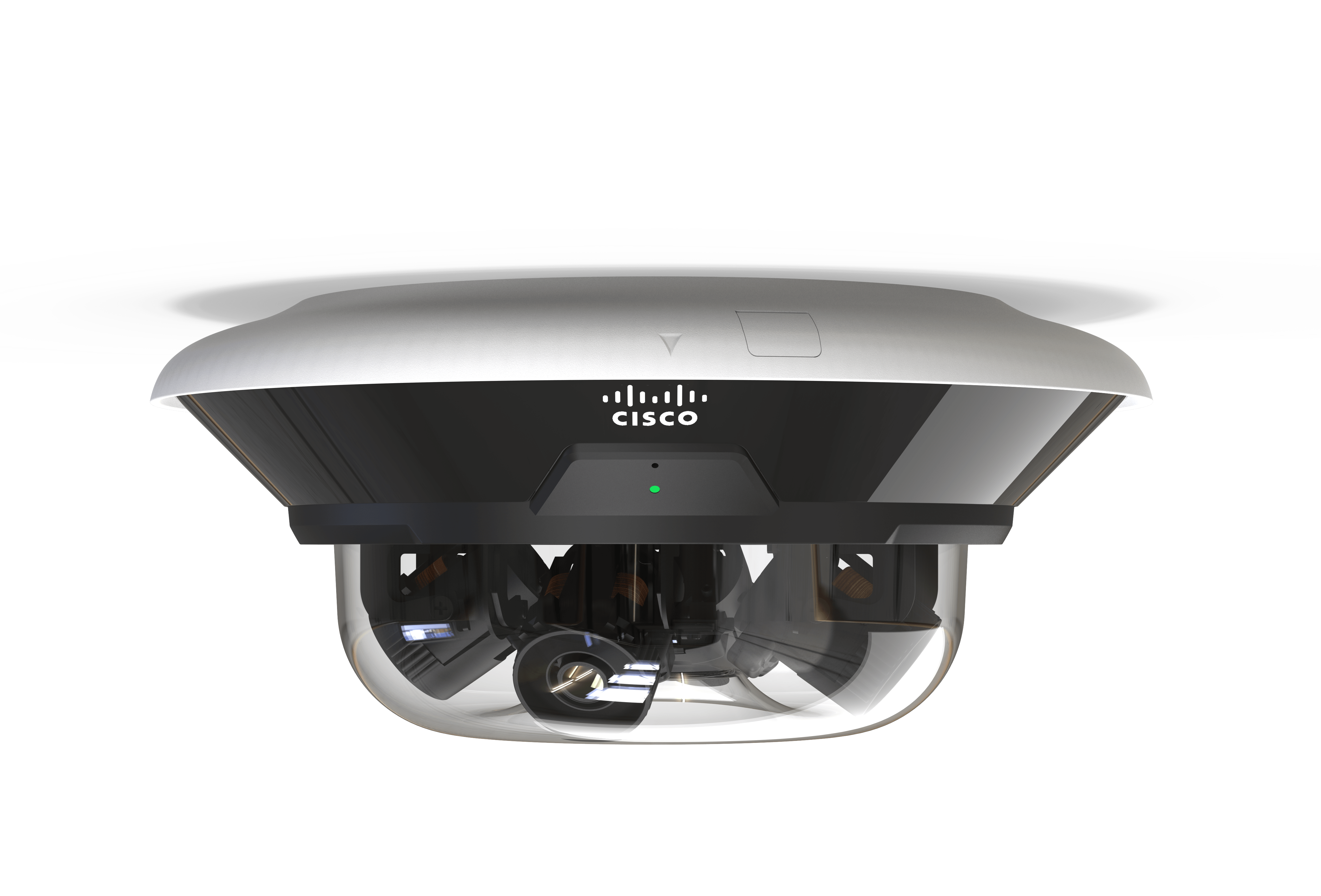

The Meraki MV84X is a multi-sensor panoramic camera with four 5 MP sensors (20 MP total) and 4TB SSD for extended retention.

Key Specifications

  • Meraki cameras
  • Four 5 MP sensors totaling 20 MP, with Smart Codec encoding
  • 4 TB enterprise-grade SSD
  • 43° – 94° horizontal field of view and 2X optical zoom
  • Infrared illumination up to 30 m (98 ft)
  • Integrated audio synchronized with video
  • People and vehicle detection powered by machine-learning technology
  • Cloud management via Meraki dashboard

Safe, smart, and secure

Granular access controls
  • Control who can view live and historical footage
  • Limit access to video exporting
  • Grant access to individual cameras or by device tag
Cloud management
  • Network-wide visibility and control
  • Stream local or remote - the cloud automatically routes the video stream
  • One-click firmware updates
  • Automatic cloud archival
Advanced analytics
  • Person and vehicle detection built in
  • Search video by object type or time
  • Heat maps and area occupancy monitoring
  • Motion-based alerts and notifications
Easy installation
  • Zero-touch cloud provisioning
  • Power over Ethernet (PoE) or adapter
  • Integrated onboard storage - no NVR required
  • Mount accessories included
Datasheet
Specifications
4x 5MP multi-sensor form factor Up to 20MP video resolution to capture details Night vision with IR illumination up to 30m / 98.5ft IK10+ and IP66 rated for harsh environments Intelligent motion indexing with motion search Built-in analytics like motion search and motion recap are included with a standard licenseMachine learning capability for intelligent object detection
Role-based user accounts provide secure video access and ensure privacy
Cloud-augmented edge storage eliminates the need for NVRs and servers
Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip
Suitable for deployments of all sizes, 1-10,000+ cameras
NDAA compliant
Category
Specifications
Camera1/2.7” 4x5MP (2560x1920) progressive CMOS image sensor
4TB high-endurance solid-state storage
4x Varifocal lens providing 2x Optical Zoom
3.42x6.85mm focal length (Per-Imager)
f/1.85 aperture
Field of view
Diagonal: 129°-55°
Horizontal: 118°-45°
Vertical: 102°-35°
Auto day/night mode switching capable
Built-in IR illuminators, effective up to 30 m (98.5 ft)
Heating elements
Video4x5MP video recording (2560x1920) with H.264 Smart Retention, up to 24fps
4x2MP video recording (1920x1080) with H.264 Smart Retention, up to 24fps
High dynamic range (HDR)
Cloud-augmented edge storage (locally stored video; metadata in the cloud)
Direct live streaming with no client software (native browser playback)*
Stream video anywhere with an automatic cloud proxy
DORI Specifications (Maximum Resolution)Detect (25 ppm/ 8 ppf)
45.5 m / 149.2 ft (Wide FoV)
106.7 m / 350 ft (Narrow FoV)
Observe (63 ppm/ 19 ppf)
18 m / 59 ft (Wide FoV)
42.3 m / 138.8 (Narrow FoV)
Recognize (125 ppm/ 38 ppf)
9.1 m / 29.8 ft (Wide FoV)
21.3 m / 69.9 ft (Narrow FoV)
Identify (250 ppm/ 76 ppf)
4.5 m / 14.7 ft (Wide FoV)
10.7 m / 35.1 ft (Narrow FoV)
Networking1x 10/100/1000BASE-T Ethernet (RJ45)
DSCP traffic marking
PoE RequirementsWith IR: 802.3bt (PoE++)
Without IR: 802.3at (PoE+)
Maximum Power per Port: 60 W
EnvironmentOperating Temperature
-30°C to +45°C
-30°C to +40°C (when IR is ON)
Data and network securityFull disk encryption (AES-256)
Automatically purchased and provisioned TLS certificates (publicly signed)
Management encryption and two-factor authentication
Physical characteristicsDimensions (Main Body):
267 mm (Diameter) × 114 mm (Height)
Dimensions (w/ Bracket):
275 mm (Diameter) × 118 mm (Height)
Weight: 2.7 kg / 5.95 lbs
Lenses: 4× Varifocal Lenses
Network Port: Female RJ45 Ethernet Connector
LED Indicator: Multicolor, Multifunction Status LED
Reset Button: Included
Warranty5-year hardware warranty with advanced replacement
HardwareMV84X-HW: 4x5MP Multi-Sensor camera with 4TB for internal edge storage
LicensingLIC-MV-MULTCAM-XY: Meraki MV Enterprise license (X = 1, 3, 5, 7, 10 years)
AccessoriesMA-MNT-MV-19: Pendant Head
MA-MNT-MV-29: Pendant Pipe (20 cm) (1.5” PS11)
MA-MNT-MV-39: Mounting Adapter for Pendant/Parapet
MA-MNT-MV-49: Wall Mount Bracket
MA-MNT-MV-59: Junction Box
MA-MNT-MV-69: Pole Mount Adapter
MA-MNT-MV-79: Corner Mount Adapter
MA-MNT-MV-89: Parapet Mounting Bracket
Shipping & Returns
SHIPPING
  • All orders are drop-shipped directly from Cisco using FedEx Express.
  • If the product is in stock at Cisco, delivery typically takes 3 to 4 business days, including licenses. Lead times vary by model — call 602-806-2807 to confirm availability before ordering.
  • Orders must ship within the United States. For delivery in Canada, contact sales@novbox.ca.
RETURNS
  • All sales are final. No returns or exchanges are accepted — we follow Cisco’s policy of no returns or cancellations on orders.
  • Novbox LLC reserves the right to cancel and refund any purchase at its sole discretion.
  • Please confirm the model and license tier with us before ordering if you are unsure.
WARRANTY & SUPPORT
  • Hardware is covered by the Cisco Meraki manufacturer warranty. Coverage depends on the model — see the product datasheet.
  • Novbox is an authorized Cisco partner — all products are new and genuine.

Full terms: Terms of Purchase

FAQs

Ordering questions

How fast will this ship?

All orders are drop-shipped directly from Cisco using FedEx Express. If the product is in stock at Cisco, delivery typically takes 3 to 4 business days, including licenses.

Is the license included with the hardware?

Licensing is ordered together with the hardware and ships with it, so an in-stock order arrives complete. If you are not sure which license tier you need, contact us before ordering and we will confirm it.

Can I return or cancel this order?

No. All sales are final — no returns or exchanges. We strictly follow Cisco's policy of no returns or cancellations on orders. Novbox LLC does reserve the right to cancel and refund a purchase at its own discretion.

Do you ship outside the United States?

Orders from this store must ship within the United States. For delivery in Canada, contact sales@novbox.ca and a representative from Novbox Canada will assist you with pricing in Canadian dollars.

Who is eligible to buy from Novbox?

Purchases are for entrepreneurs, small businesses and mid-market customers. If you are unsure whether your organization qualifies, contact us before ordering.

Can I get bulk or project pricing?

Yes. Contact us for bulk pricing, deployment quotes, configuration help or license tier questions — we quote project pricing directly.
