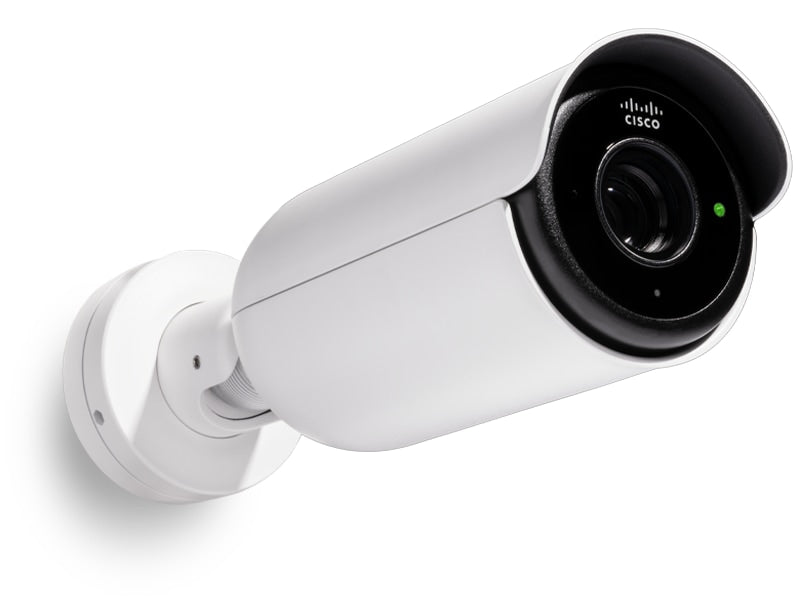

Meraki MV53X

SKU : MV53X

Regular price $2,226.00 ~~$3,550.00~~ 37% OFF

Add to Cart

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Spent $199.00 more to get free shipping

Estimated delivery between 08 June - 15 June.

COMPLETE THE LOOK

Outdoor telephoto bullet camera for harsh environments

Durable outdoor camera with 3X optical zoom and 1TB SSD for up to 120 days of video retention in challenging conditions.

Meraki MV53X

$2,226.00

Ask about Meraki MV53X

Product Details

The Meraki MV53X is a durable outdoor telephoto bullet camera for harsh environments with 1TB SSD for up to 120 days of video retention.

Key Specifications

Meraki cameras
8.4 MP sensor with Smart Codec encoding
1 TB high write endurance SSD
12° - 37° horizontal field of view and 3X optical zoom
Infrared illumination up to 50 m (164 ft)
Integrated audio synchronized with video
People and vehicle detection powered by machine-learning technology
Cloud management via Meraki dashboard
IP67 and IK10 rated for harsh environments

Safe, smart, and secure

Granular access controls

Control who can view live and historical footage
Limit access to video exporting
Grant access to individual cameras or by device tag

Cloud management

Network-wide visibility and control
Stream local or remote - the cloud automatically routes the video stream
One-click firmware updates
Automatic cloud archival

Advanced analytics

Person and vehicle detection built in
Search video by object type or time
Heat maps and area occupancy monitoring
Motion-based alerts and notifications

Easy installation

Zero-touch cloud provisioning
Power over Ethernet (PoE) or adapter
Integrated onboard storage - no NVR required
Mount accessories included

Datasheet

Specifications
Varifocal lens bullet camera with 1/1.8" 8.41MP Image Sensor Bullet form factor with 12-37° horizontal FoV More detailed information with up to 4K resolution Low bandwidth Consumption for recording and streaming using Smartcodec encoding Guaranteed days of video with Smart Retention Night vision with IR illumination up to 50m (164 ft) Intelligent motion indexing with search engine Built-in search tools like motion search, motion recap, motion heatmaps and Attribute Search. Built-in analytics like Line Crossing, Area Occupancy, MV sense and Custom Computer-Vision capabilities	Machine-learning capability for intelligent object detection Secure video access to ensure privacy with role-based user accounts Cloud-augmented edge storage for minimal physical infrastructure Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip Suitable for deployments of all sizes, from 1-10,000+ cameras NDAA Compliant
Category
Specifications
Camera
1/1.8” 8.41MP (3840x2160) progressive CMOS image sensor 12-37° Varifocal Lens 1TB high-endurance solid-state storage 12.5-38 mm focal length range f/2.05 - f/2.2 aperture range Auto and Manual Focus Controls Auto day/night capable Built in IR-illuminators, effective up to 50m (149 ft)
Video
4K video recording (3840x2160) with H.264 Smart Codec encoding, up to 15fps 4MP (2560 x 1440) with H.264 Smart Codec encoding, up to 24fps 1080p (1920x1080) with H.264 Smart Codec encoding, up to 24fps High dynamic range (HDR) Cloud augmented edge storage (locally stored video, metadata in the cloud) Optimized retention settings (scheduling, motion-based) for variable retention Direct live streaming with no client software (native browser playback)*** Stream video anywhere with automatic cloud proxy
DORI Specifications (Maximum Resolution)
Unzoomed Detect (25 ppm/ 8 ppf) 246.5 m / 808.7 ft Observe (63 ppm/ 19 ppf) 97.8 m / 320.8 ft Recognize (125 ppm/ 38 ppf) 49.3 m / 161.7 ft Identify (250 ppm/ 76 ppf) 24.7 m / 81.0 ft Fully Zoomed Detect (25 ppm/ 8 ppf) 778.8 m / 2555.1 ft Observe (63 ppm/ 19 ppf) 309.1 m / 1014.1 ft Recognize (125 ppm/ 38 ppf) 155.8 m / 511.2 ft Identify (250 ppm/ 76 ppf) 77.9 m / 255.6 ft
Data and Network Security
Full disk encryption (AES 256-bit) Automatically purchased and provisioned TLS certificates (publicly-signed) Management encryption and two-factor authentication
Networking
1x 10/100/1000 Base-T Ethernet (RJ45) DSCP traffic marking
Power
Power Consumption: up to 30W via 802.3at PoE PoE+ required for operation
Environment
Temperature: -40°C - 50°C (-40°F - 122°F)
In The Box
Quick start & installation guide MV camera hardware Wall mounting kit Security and installation wrenches
Physical Characteristics
Female RJ45 Ethernet connector Multicolor, multifunction status LED, microphone cut-off switch Reset Button
Mounting Options
Wall/ceiling Pole/corner with accessories
Ratings
IK10+ vandal-resistance IP67 weather-proofing
Warranty
5 year hardware warranty with advanced replacement
Hardware
MV53X-HW Varifocal lens outdoor bullet camera with 1TB storage
Licensing
LIC-MV-XYR: Meraki MV Enterprise license (X = 1, 3, 5, 7, 10 years) [Optional] LIC-MV-SEN-XYR: Meraki MV Sense license (X = 1, 3, 5, 7, 10 years) [Optional] LIC-MV-CA30-XY: MV Cloud Archive license (X = 1, 3, 5 years) [Optional] LIC-MV-CA90-XY: MV Cloud Archive license (X = 1, 3, 5 years) [Optional] LIC-MV-CA180-XY: MV Cloud Archive license (X = 1, 3, 5 years) [Optional] LIC-MV-CA365-XY: MV Cloud Archive license (X = 1, 3, 5 years)
Compatible Accessories
MA-MNT-MV-28: Pole mount MA-MNT-MV-58: Conduit back box MA-MNT-MV-88: Corner Mount
