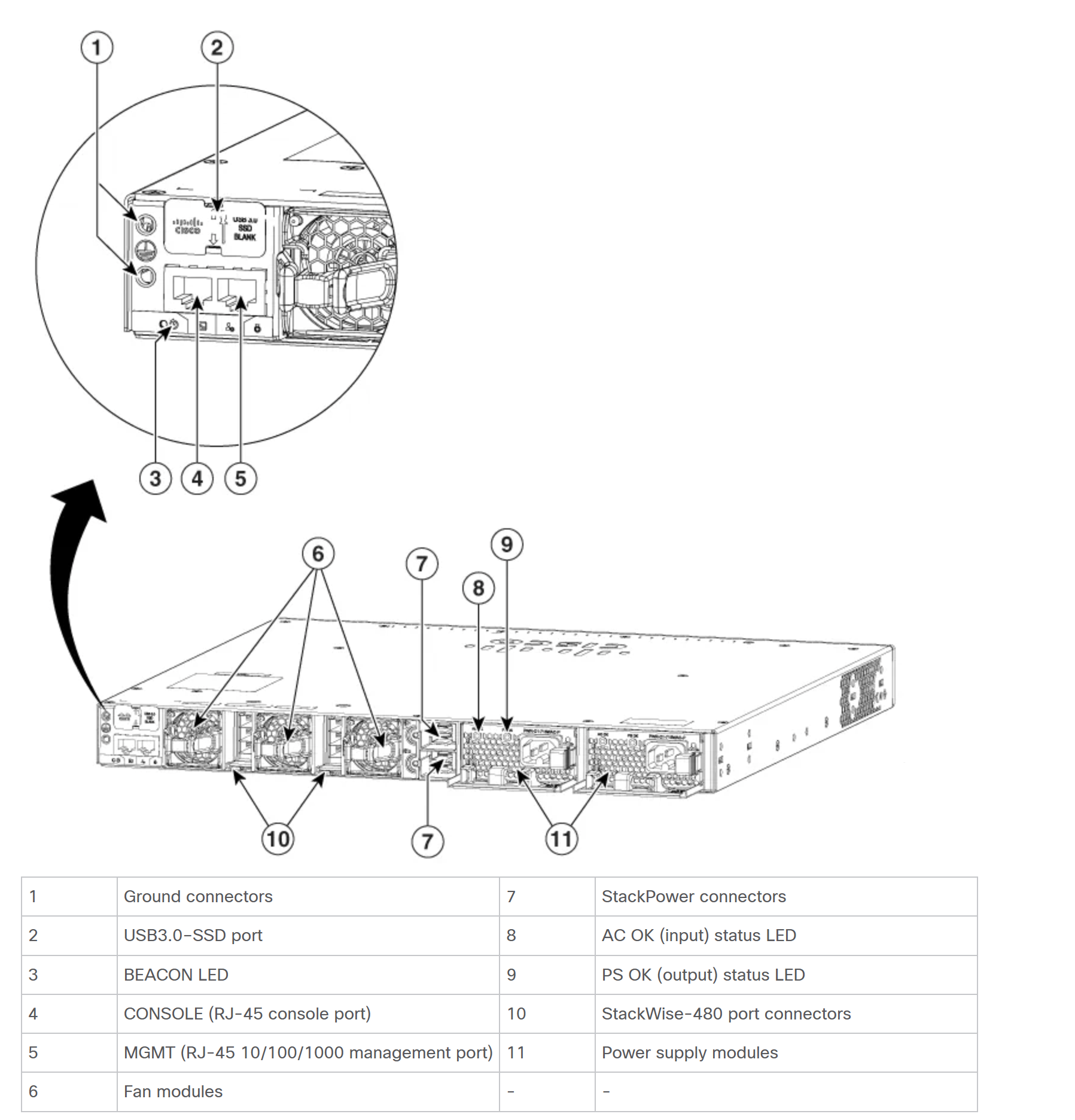

Catalyst 9300 back panel — fans, StackWise-480, StackPower and dual PSU bays

Meraki C9300-24P-M

SKU : C9300-24P-M

Regular price $5,010.00 ~~$8,955.94~~ 44% OFF

Available to order

Note: A Meraki license is required to operate this device. Select “Hardware Only” only if you already have a license.

Ships directly from Cisco

Lead time varies by model — not all items ship immediately.

Call 602-806-2807 for current availability and a delivery estimate before ordering.

Spent $199.00 more to get free shipping

COMPLETE THE LOOK

24-port PoE+ enterprise switch with Meraki cloud management

High-performance 24-port PoE+ switch with 715W PoE budget and modular uplinks for campus networks.

Meraki C9300-24P-M

$5,010.00

Ask about Meraki C9300-24P-M

Need bulk pricing, configuration help, or a license tier quote?

Skip the cart and get a written quote from a Cisco-certified specialist — usually within 4 business hours. Includes pricing, ETA, and a recommendation if you need one.

Quoting on Meraki C9300-24P-M · Same-day response, no call queue

Request a Quote →

Product Details

The Cisco Catalyst C9300-24P-M is a cloud-managed access switch that pairs enterprise-class Catalyst hardware with the simplicity of the Meraki dashboard. Deploy with zero-touch provisioning, monitor every port and client from the cloud, and secure traffic at scale with Adaptive Policy security groups — no command line required.

Ports	24 × 1 GbE RJ45, PoE+
Uplinks	Modular (10/25/40G modules available)
PoE budget (default PSU)	445W
PoE budget (dual PSU)	up to 720W
Switching capacity	208 Gbps (480 Gbps with stacking)
Forwarding rate	154.76 Mpps
Stacking	480 Gbps StackWise-480 stacking (up to 8 switches) with StackPower shared power resiliency
Default power supply	PWR-C1-715WAC (715W), dual hot-swappable PSU bays
Form factor	1U rack mount, rack brackets included
Warranty	Full lifetime hardware warranty with next-day advance replacement

Management highlights: zero-touch remote provisioning, automatic scheduled firmware upgrades, per-port and per-client usage analytics, remote packet capture and cable testing, virtual stacking across thousands of ports, and email/SMS/push alerting — all from the Meraki dashboard.

Licensing: Requires a Cisco Meraki Enterprise or Advanced license (available in 1, 3, 5, 7, or 10-year terms — see our Licenses & Renewals collection).

Questions about the right configuration, PoE budget, or license tier? Request a quote — a Cisco-certified specialist responds within 4 business hours.

Datasheet

Specifications
Number of Ports	Model / Description
Fiber	C9300-24S-M / 24-port SFP switch
C9300-48S-M	48-port SFP switch
24 Ports	C9300-24T-M / 24-port GbE switch
C9300-24P-M	24-port GbE PoE+ switch
C9300-24U-M	24-port GbE UPoE switch
C9300-24UX-M	24-port mGbE UPoE switch
48 Ports	C9300-48T-M / 48-port GbE switch
C9300-48P-M	48-port GbE PoE+ switch; ENERGY STAR®️ certified
C9300-48U-M	48-port GbE UPoE switch
C9300-48UXM-M	36-port 2.5GbE + 12-port mGbE UPoE switch; ENERGY STAR®️ certified
C9300-48UN-M	48-port 5GbE UPOE switch
Catalyst 9300X-M License Structure	12/24-Port / 48-port
Advanced Features	LIC-C9300-24A / LIC-C9300-48A
Enterprise Features	LIC-C9300-24E / LIC-C9300-48E
Model/Persona	Interfaces / Uplink (SFP28, QSFP+) / 120G Hardware Stack Port / Dedicated Management Interface / PoE/ UPoE Capabilities
C9300-24S-M	24 x 1G SFP / Modular / 2 / 1 / n/a
C9300-24T-M	24 x 1GbE RJ45 / Modular / 2 / 1 / n/a
C9300-24P-M	24 x 1GbE RJ45 / Modular / 2 / 1 / PoE
C9300-24U-M	24 x 1GbE RJ45 / Modular / 2 / 1 / UPoE
C9300-24UX-M	24 x 100M/1G/2.5G/5G/10G RJ45 / Modular / 2 / 1 / UPoE
C9300-48S-M	48 x 1G SFP / Modular / 2 / 1 / n/a
C9300-48T-M	48 x 1GbE RJ45 / Modular / 2 / 1 / n/a
C9300-48P-M	48 x 1GbE RJ45 / Modular / 2 / 1 / PoE
C9300-48U-M	48 x 1GbE RJ45 / Modular / 2 / 1 / UPoE
C9300-48UXM-M	36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G / Modular / 2 / 1 / UPoE
C9300-48UN-M	48 x 100M/1G/2.5G/5G / Modular / 2 / 1 / UPoE
Model	Dimensions (h x w x d) W/ Default Power Supply / Weight / Mount Type / Hot Swap Fans / Operating Temperature / Humidity
C9300-24S-M	1.73" x 17.5" x17.7" (4.3 x 44.4 x 44.9cm) / 16.84 lb (7.64 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-24T-M	1.73” x 17.5” x 17.7” (4.4 x 44.5 x 44.9cm) / 16.03 lb (7.27 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-24P-M	1.73” x 17.5” x 17.7” (4.4 x 44.5 x 44.9cm) / 16.33 lb (7.4 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-24U-M	1.73” x 17.5” x 19.2” (4.4 x 44.5 x 44.8cm) / 16.63 lb (7.54 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-24UX-M	1.73” x 17.5” x 20.2” (4.4 x 44.5 x 51.3cm) / 18.18 lb (8.25 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48S-M	1.73" x 17.5" x 19.2" (4.3 x 44.4 x 44.9cm) / 17.32 lb (7.86kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48T-M	1.73” x 17.5” x17.7” (4.4 x 44.5 x 44.9cm) / 16.43 lb (7.45 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48P-M	1.73” x 17.5” x17.7” (4.4 x 44.5 x 44.9cm) / 16.73 lb (7.59 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48U-M	1.73” x 17.5” x 19.2” (4.4 x 44.5 x 48.8cm) / 17.03 lb (7.72 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48UXM-M	1.73” x 17.5” x 22.2” (4.4 x 44.5 x 56.4cm) / 20.50 lb (9.34 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
C9300-48UN-M	1.73” x 17.5” x 22.2” (4.4 x 44.5 x 56.4cm) / 20.05 lb (9.09 kg) / 1U Rack Mount / Yes, 3x / -5°C to 45°C / 5 to 90%
Model	Switching Capacity / Switching Capacity with Stacking / Forwarding rate
C9300-24S-M	208 Gbps / 480 Gbps / 154.76 Mpps
C9300-24T-M	208 Gbps / 480 Gbps / 154.76 Mpps
C9300-24P-M	208 Gbps / 480 Gbps / 154.76 Mpps
C9300-24U-M	208 Gbps / 480 Gbps / 154.76 Mpps
C9300-24UX-M	640 Gbps / 480 Gbps / 476.19 Mpps
C9300-48S-M	256 Gbps / 480 Gbps / 190.48 Mpps
C9300-48T-M	256 Gbps / 480 Gbps / 190.48 Mpps
C9300-48P-M	256 Gbps / 480 Gbps / 190.48 Mpps
C9300-48U-M	256 Gbps / 480 Gbps / 190.48 Mpps
C9300-48UXM-M	580 Gbps / 480 Gbps / 431.54 Mpps
C9300-48UN-M	640 Gbps / 480 Gbps / 476.19 Mpps
Model	Default Power Supply / Hot Swap Power Supply / Available PoE W/ Primary PS / Max Available PoE W/ Secondary PS** / Power Load (idle/max)
C9300-24S-M	PWR-C1-715WAC-P-M / Yes, Dual / n/a / n/a / 84.60 / 124.30 W
C9300-24T-M	PWR-C1-350WAC-P-M / Yes, Dual / n/a / n/a / 79.2 / 99 W
C9300-24P-M	PWR-C1-715WAC-P-M / Yes, Dual / 445W / 720W / 84.1 / 554.4 W
C9300-24U-M	PWR-C1-1100WAC-P-M / Yes, Dual / 830W / 1440W / 85.4 / 990.3 W
C9300-24UX-M	PWR-C1-1100WAC-P-M / Yes, Dual / 560W / 1440W / 162.7 / 809.9 W
C9300-48S-M	PWR-C1-715WAC-P-M / Yes, Dual / n/a / n/a / 88.90 / 158.30 W
C9300-48T-M	PWR-C1-350WAC-P-M / Yes, Dual / n/a / n/a / 83.9 / 109.9 W
C9300-48P-M	PWR-C1-715WAC-P-M / Yes, Dual / 437W / 1152W / 92.6 / 555 W
C9300-48U-M	PWR-C1-1100WAC-P-M / Yes, Dual / 822W / 1800W / 145 / 844.9 W
C9300-48UXM-M	PWR-C1-1100WAC-P-M / Yes, Dual / 490W / 1590W / 218.5 / 785.5 W
C9300-48UN-M	PWR-C1-1100WAC-P-M / Yes, Dual / 645W / 1745W / 157.9 / 843.8 W
Model	Primary PSU / PoE / With 350W Secondary PSU / With 715W Secondary PSU / With 1100W Secondary PSU
C9300-24P-M	PWR-C1-715WAC-P-M / 445W / 720W 2 / 720W 2 / 720W 2
PWR-C1-1100WAC-P-M 1	720W 2 / 720W 2 / 720W 2 / 720W 2
C9300-24U-M	PWR-C1-1100WAC-P-M / 830W / 1180W 2 / 1440W 2 / 1440W 2
C9300-24UX-M	PWR-C1-1100WAC-P-M / 560W / 910W / 1275W / 1440W 2
C9300-48P-M	PWR-C1-715WAC-P-M / 437W / 787W / 1152W / 1440W 2
PWR-C1-1100WAC-P-M 1	822W / 1172W / 1440W 2 / 1440W 2
C9300-48U-M	PWR-C1-1100WAC-P-M / 822W / 1172W / 1537W / 1800W 3
C9300-48UXM-M	PWR-C1-1100WAC-P-M / 490W / 840W / 1205W / 1590W
C9300-48UN-M	PWR-C1-1100WAC-P-M / 645W / 995W / 1360W / 1745W
Accessory	Description / Supported Models
PWR-C1-350WAC-P-M	350W AC Power Supply / C9300, C9300L, C9300X
PWR-C1-715WAC-P-M	715W AC Power Supply / C9300, C9300L, C9300X
PWR-C1-1100WAC-P-M	1100W AC Power Supply / C9300, C9300L, C9300X
PWR-C1-1900WAC-P-M	1900W AC Power Supply (230V)** / C9300, C9300X
C9300X-NM-4C	4 x 40/100G QSFP28 Uplink Module / C9300X-48HX, C9300X-48TX and C9300X-24Y
C9300X-NM-8Y-M	8 x 25G SFP28 Uplink Module / C9300X
C9300X-NM-2C-M	2 x 40/100G QSFP28 Uplink Module / C9300X
C9300-NM-2Q-M	2 x 40G QSFP Uplink Module / C9300
C9300-NM-8X-M	8 x 1G/10G SFP+ Uplink Module / C9300
C9300-NM-2Y-M*	2 x 25G/10G/1G SFP28 Uplink Module / C9300
C9300-NM-4M	4 x 100M/1G/2.5G/5G/10G RJ-45 Uplink Module / C9300
C9300-NM-4G	4 x 1G SFP Uplink Module / C9300
STACK-T1-50CM-M	Catalyst Meraki 480G Stacking Cable, 0.5 Meter / C9300, C9300X
STACK-T1-1M-M	Catalyst Meraki 480G Stacking Cable, 1 Meter / C9300, C9300X
STACK-T1-3M-M	Catalyst Meraki 480G Stacking Cable, 3 Meter / C9300, C9300X
CAB-SPWR-30CM-M	Catalyst 9300-M 30CM StackPower Cable / C9300, C9300X
CAB-SPWR-150CM-M	Catalyst 9300-M 150CM StackPower Cable / C9300, C9300X
FAN-T2 -M	System Fan / C9300, C9300L, C9300X
4PT-KIT-T2-M	Catalyst 9300-M Rack Mount Kit / C9300, C9300L, C9300X
Transceiver Model	Standard / Supported C9300-M platform
1 Gbps MA-SFP-1GB-SX MA-SFP-1GB-LX10	1000BASE-SX over OM1/2/3/4 up to distances of 1KM 1000BASE-LX10 over OS1/0S2 up to distances of 10KM / C9300, C9300L, C9300X
10 Gbps MA-SFP-10GB-SR MA-SFP-10GB-LR MA-SFP-10GB-ER MA-SFP-10GB-ZR	10GBASE-SR over OM1/2/3/4 up to distances of 400 M 10GBASE-LR over OS1/2 up to distances of 10 KM 10GBASE-ER over OS1/2 up to distances of 40 KM 10GBASE-ZR over OS1/2 up to distances of 80 KM / C9300, C9300L, C9300X
MA-SFP-10GB-LRM	10GBASE-LRM over OM1/2/3, OS1/2 up to distances of 300 M / C9300, C9300L
25 Gbps	Please see TMGmatrix for compatibility for SFP28 modules / C9300, C9300L, C9300X
40 Gbps MA-QSFP-40G-CSR4 MA-QSFP-40G-SR-BD	QSFP-MPO12 over OM2/3/4 up to distances of 400 M QSFP Duplex LC over OM2/3/4 up to distances of 150 M / C9300, C9300X
100 Gbps MA-QSFP-100G-LR4 MA-QSFP-100G-SR4	100GBASE-LR4 over OS1/2 up to distances of 10 KM 100GBASE-SR4 over OM3/4/5 up to distances of 100 M / C9300X
Direct Attach MA-CBL-TA-1M MA-CBL-TA-3M	10GSFP+Cu Passive Twinax / C9300, C9300L, C9300X
Electromagnetic Compatibility Certifications
FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317
Safety
CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Environmental
Reduction of Hazardous Substances (RoHS)
Warranty
Full lifetime hardware warranty with next-day advanced replacement included
Model
MTBF at 25°C
C9300-24S-M
284,130
C9300-24T-M
314,790
C9300-24P-M
299,000
C9300-24U-M
238,410
C9300-24UX-M
214,760
C9300-48S-M
281,920
C9300-48T-M
305,870
C9300-48P-M
277,770
C9300-48U-M
227,410
C9300-48UXM-M
202,160
C9300-48UN-M
198,647
